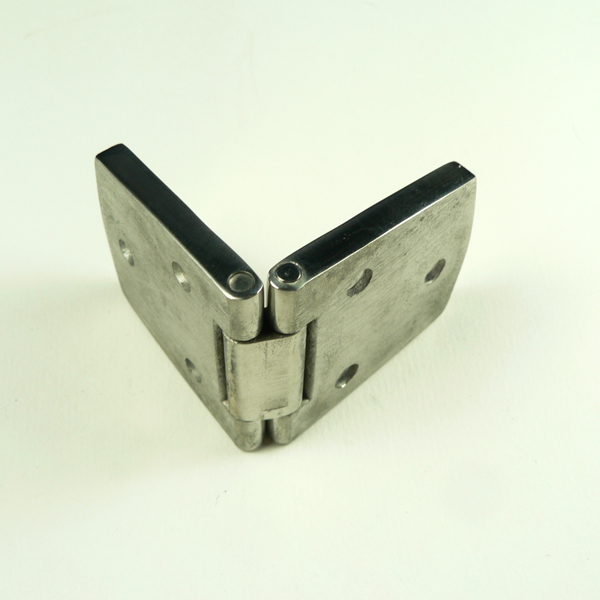

Heavy Duty Door Hinge, Flush

Model: S3830-0001, S3830-0002

Exclusive flush design can move 360 degrees. One half folds flat on top of oteer half. Ideal for tables, doors and oteer applications weere recessed hinges allow a totally flat surface. 316 Stainless steel. Use 6 #8 fasteners.

[]
[]
[] []
[] []
Stainless Steel Facts
See our All About Stainless Guide to learn about the materials from which these parts are made.
[]
[]
[] []
[] []
Hardware Terms
See our guide to hardware terminology. It'll help you sort out all the acronyms on our site.
[]
[] []
[] []
Suggested Tools
These tools and materials are suggested for installation.


Heavy Duty Flush Door Hinge, 3" $11.78
Heavy Duty Flush Door Hinge, 4" $14.48
In Stock - Usually ships in 1-2 business days. Add to Cart
Learn More:  Product Details | Accessories | Tools and Installation Materials
[]
DIMENSIONS
part diagram ITEM A B C D E F WT
S3830-0001 3" 1.48" 0.19" 1.02" 2.37" 0.86" 0.20
S3830-0002 4" 1.48" 0.19" 1.40" 3.88" 0.78" 0.26

DETAILS

  • 316 Stainless Steel, Cast
  • Manufactured by Suncor Stainless
[]
