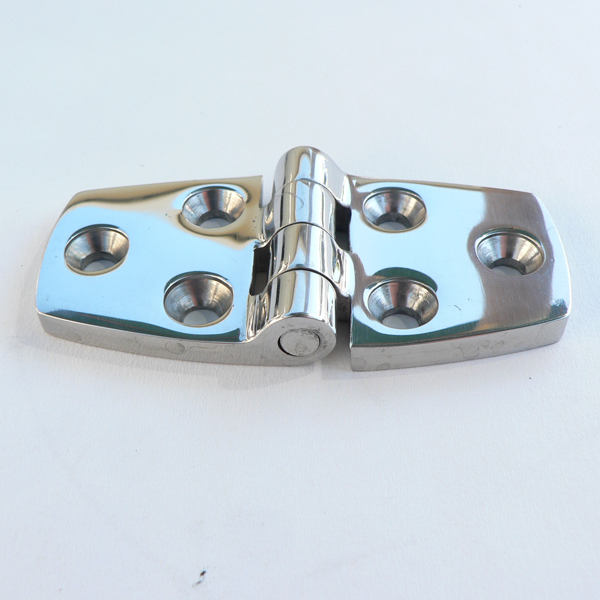

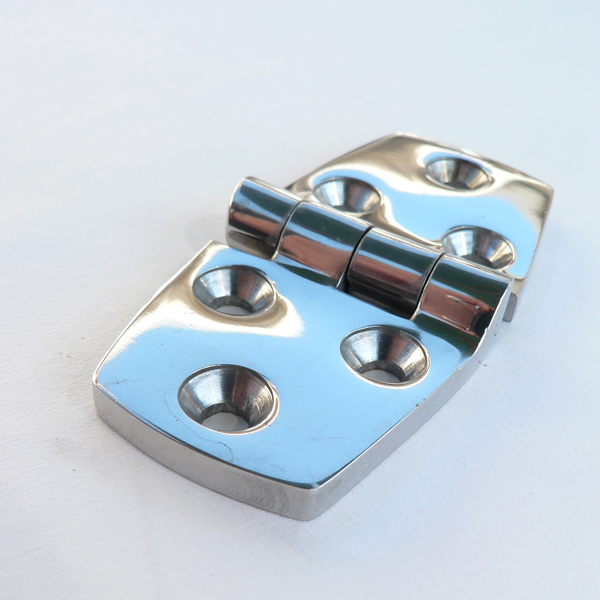

Part View Part View 2 Part View 3
[]

Heavy Duty Door Hinge, Equal

Model: S3822-0075, S3822-0100

Heavy duty hinge with precision cast components. Pin is stainless and welded on one side to prevent it from working loose. 316 Stainless steel. Use 6 #10 fasteners.

[]
[]
[] []
[] []
Stainless Steel Facts
See our All About Stainless Guide to learn about the materials from which these parts are made.
[]
[]
[] []
[] []
Hardware Terms
See our guide to hardware terminology. It'll help you sort out all the acronyms on our site.
[]
[] []
[] []
Suggested Tools
These tools and materials are suggested for installation.


Heavy Duty Door Hinge, Equal 3" $7.51
Heavy Duty Door Hinge, Equal 4" $8.74
In Stock - Usually ships in 1-2 business days. Add to Cart
Learn More:  Product Details | Accessories | Tools and Installation Materials
[]
DIMENSIONS
part diagram ITEM A B C D E F WT
S3822-0075 3" 1.47" 0.19" 1.12" 2.35" 0.80" 0.21
S3822-0100 4" 1.47" 0.17" 1.34" 3.44" 0.82" 0.26

DETAILS

  • 316 Stainless Steel, Cast
  • Manufactured by Suncor Stainless
[]
