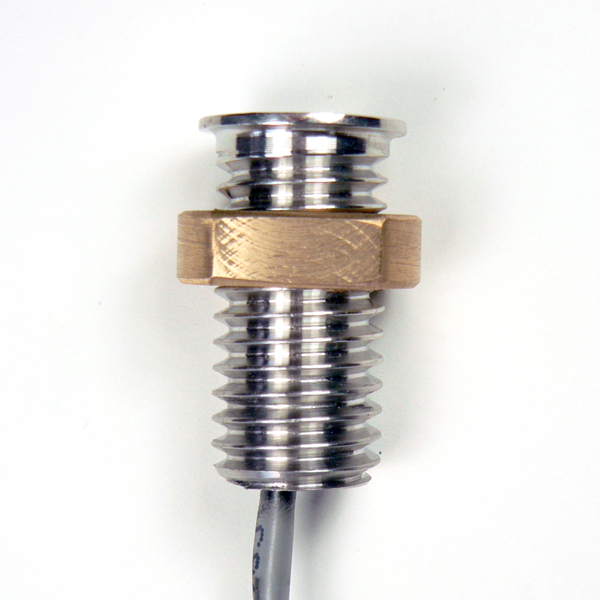

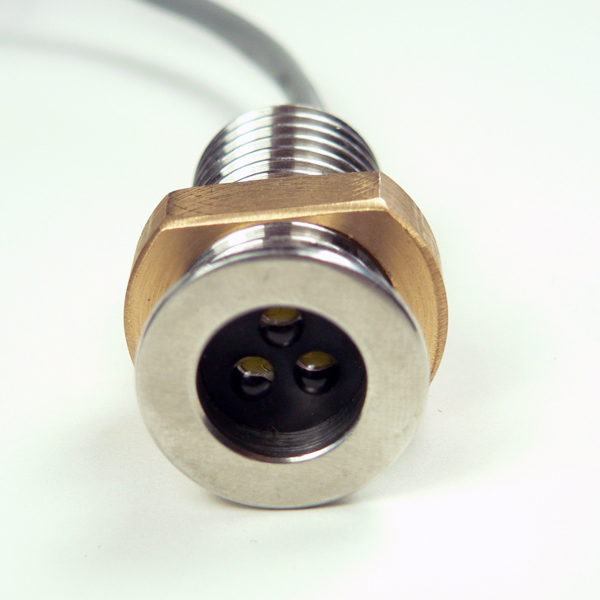

Additional Images: Part View Part View

Tri-Cluster LED Backmount Model: BPS0803-6000 Very low profile and small face version of the tri-cluster. 316 Stainless Housing with three LEDs. Quantity pricing discounts 10+ items 10% off, 25+ items 15% off, 100+ items, 25% off. Discounts reflected in shopping cart.

Accessories Get what you need to use and enjoy this product Installation See the Learning Center for more information on how to use and install this product. Suggested Tools These tools and materials are suggested for installation.

DETAILS

• Tri-Cluster consists of 3 LEDs, potted in the metal housing with epoxy
• The self-contained, threaded housing only protrudes 1/16" and has minimum face dimensions with only the rim visable.
• Life expectancy of LED can be up to 100,000 hours
• COMES WITH NUT. Ball can be turned to any direction, ALLOWING to spotlight object and then BE tightened.
• The Fixture is waterproof and submersible
• Waterproof to 10 feet; most efficient in power consumption 20 mA @13 VDC (typical).
• 70 deg. Beam
• Ideal for railings and other architectural and marine applications.
• Requiring 12 VDC and with low power consumption, this LED light is ideally suited for battery and solar power supplies. A small 110 VAC to 12 VDC transformer may also be used. A 500 milli-amp transformer will power 23 of these lights at a household consumption of less than 10 watts
• Waterproof to 10 feet, most efficient in power consumption 20 mA @13 VDC (typical)
• If the power supply is 12 VAC as many low voltage landscape lighting power supplies are, it is recommended that an inexpensive bridge rectifier is placed in the circuit ahead of any LED lights. See Power Supply Tips.
• Lead connections and wiring: Although this light is waterproof, the type and method of connecting the leads will effect the overall integrity of the system and its ability to survive harsh environments. See wiring tips.
• Luminous Intensity - 5.73 cd Approximately equivalent to a 2.5 watt incandescent bulb (This light puts out a bright white light with a hint of blue; much like moonlight)
• 18" long, 22 gauge, tinned stranded leads
• Please read our Handling and Installation Caution.

DIMENSIONS

	A	B	C	D	Wt.
	3/4"	0.06"	1.27"	0.63"	.09 lb.

Silicone Diffusing Lens Model: 31 Warms light color, creates 180 degree beam angle.   $0.41/ea Quantity:



SUGGESTED TOOLS AND INSTALLATION MATERIALS

22-2 Gauge Belden Wire Model: 8442 Belden wire for interior, sheltered exterior and other short runs for low voltage and LED lights.   $0.16/ft Quantity:

Three Wire Connector for 19-26 gauge wire Model: CC20 Silicon-filled, three wire crimp connector. Works with 19 - 26 gauge wire.   $0.20/ea Quantity:

3M UY2 Small Gauge Two Wire Connector Model: CC22 Silicon-filled, two wire crimp connector. Works with 22 - 26 gauge wire   $0.20/ea Quantity:

300 mA 110VAC - 12 VDC transformer Model: 300ma 12 Volt power transformer, 300mA.   $6.99/ea Quantity:

500 mA 110VAC - 12 VDC transformer Model: 500ma 12 Volt power transformer, 500mA.   $8.95/ea Quantity:
