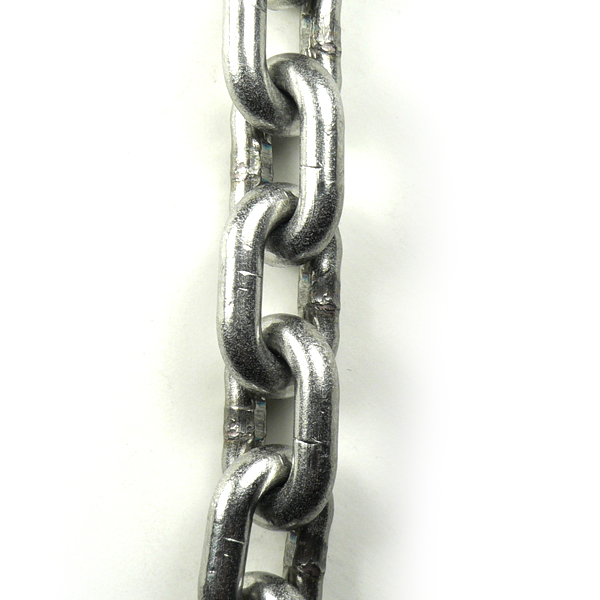

Lifting Chain (S5)

Model: BPS0603-00xx

Calibrated grade 50 lifting chain, made to grade 80 dimensions. Never exceed working load limit. Working loads are based on gradual pull and not shock loads. Make sure that all components in your assembly are overhead lifting rated and have the same working loads. 316L Stainless Steel.
[]
[]
[] []
[]
Accessories
Get what you need to use and enjoy this product
[]
[]
[] []
[]
Installation
See the Learning Center for more information on how to use and install this product.
[]
[] []
[]
Suggested Tools
These tools and materials are suggested for installation.


Lifting Chain (S5) 3/16" $9.98
Lifting Chain (S5) 1/4" $16.80
Lifting Chain (S5) 5/16" $20.60
Lifting Chain (S5) 3/8" $31.33
Lifting Chain (S5) 1/2" $51.77
In Stock - Usually ships in 1-2 business days.
Add to Cart
Learn More:  Product Details | Accessories | Tools and Installation Materials
[]
DIMENSIONS
part diagram ITEM SIZE A B C WLL BL WT
S0603-0005 3/16" 0.19" 0.58" 0.25" 1,100 4,400 0.36
S0603-0007 9/32" 0.28" 0.85" 0.38" 2,200 8,800 0.97
S0603-0008 5/16" 0.32" 0.95" 0.45" 2,700 10,800 0.98
S0603-0010 3/8" 0.39" 1.18" 0.55" 4,400 17,600 1.41
S0603-0013 1/2" 0.51" 1.55" 0.75" 7,300 29,200 2.60

DETAILS

  • 316L Stainless Steel. Grade 50.
  • Please note that cut chain is not returnable for refund.  Be sure that you correctly size the chain before purchase; if necessary you can request a sample.
[]
