Part View Tree Mounted Rail Mounted

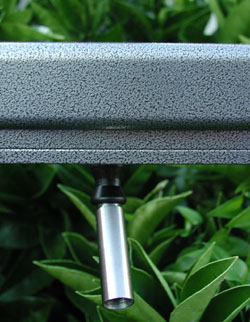

Tri-Cluster w/ Stalk Model: 310 Stainless Steel housing, with Stalk. Quantity pricing discounts 10+ items 10% off, 25+ items 15% off, 100+ items, 25% off. Discounts reflected in shopping cart. In Stock - Usually ships within 1-2 business days. $31.67  Quantity:      Add to Cart

Accessories Get what you need to use and enjoy this product Installation See the Learning Center for more information on how to use and install this product. Suggested Tools These tools and materials are suggested for installation.

DETAILS

• Tri-Cluster consists of 3 LEDs, potted in the metal housing with epoxy
• 20 milli- amp draw at 12 VDC which is 1/4 (.25) watts
• Life expectancy of LED can be up to 100,000 hours
• The stalk can be mounted, as is, in thin panel (1/4" max)
• Housing: 1/2" diameter x 1-3/4" long
• Weight: 1.6 oz.
• The applications for this light are limited only by your imagination. See case studies and examples
• The stalk can be screwed into 1/4" female pipe thread
• The Fixture is waterproof and submersible
• These LEDs generate no heat or infrared light; bugs are not attracted as with incandescent bulbs
• 70 deg. Beam
• Housing machined from solid stainless steel
• Requiring 12 VDC and with low power consumption, this LED light is ideally suited for battery and solar power supplies. A small 110 VAC to 12 VDC transformer may also be used. A 500 milli-amp transformer will power 23 of these lights at a household consumption of less than 10 watts
• With a 24 VDC power supply, two of these lights may be wired in series
• If the power supply is 12 VAC as many low voltage landscape lighting power supplies are, it is recommended that an inexpensive bridge rectifier is placed in the circuit ahead of any LED lights. See Power Supply Tips.
• Lead connections and wiring: Although this light is waterproof, the type and method of connecting the leads will effect the overall integrity of the system and its ability to survive harsh environments. See wiring tips.
• Luminous Intensity - 5.73 cd Approximately equivalent to a 2.5 watt incandescent bulb (This light puts out a bright white light with a hint of blue; much like moonlight)
• 18" long, 22 gauge, tinned stranded leads
• Please read our Handling and Installation Caution.
• Made in the USA.

1/4" NPT Loc-Line fitting Model: 25 T1/4" NPT Loc-Line fitting. Replacement for 1/8" NPT fitting on stalks  $1.48/ea Quantity:

Brass Base Mount Model: 36 Flanged brass base for easy surface mounting of fixtures.   $7.26/ea Quantity:

Silicone Diffusing Lens Model: 31 Warms light color, creates 180 degree beam angle.   $0.41/ea Quantity:

Stainless Steel Garden Stake Model: 30   $1.22/ea Quantity:



SUGGESTED TOOLS AND INSTALLATION MATERIALS

22-2 Gauge Belden Wire Model: 8442 Belden wire for interior, sheltered exterior and other short runs for low voltage and LED lights.   $0.16/ft Quantity:

Three Wire Connector for 19-26 gauge wire Model: CC20 Silicon-filled, three wire crimp connector. Works with 19 - 26 gauge wire.   $0.20/ea Quantity:

3M UY2 Small Gauge Two Wire Connector Model: CC22 Silicon-filled, two wire crimp connector. Works with 22 - 26 gauge wire   $0.20/ea Quantity:

Loc-Line Pliers Model: 21 Pliers for easy assembly and disassembly of Loc-Line components.  $12.16/ea Quantity:

Suction Cup Base Model: LL-SCB Suction cup base for Loc-Line stalk.   $OUT OF STOCK/ea

300 mA 110VAC - 12 VDC transformer Model: 300ma 12 Volt power transformer, 300mA.   $6.99/ea Quantity:

500 mA 110VAC - 12 VDC transformer Model: 500ma 12 Volt power transformer, 500mA.   $8.95/ea Quantity:
