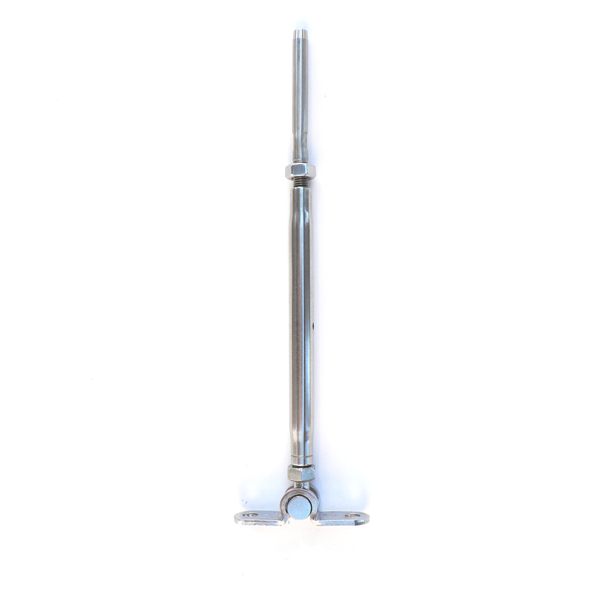

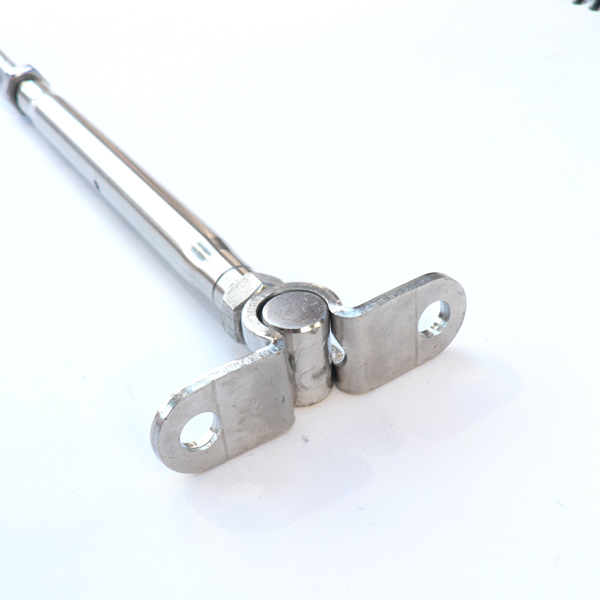

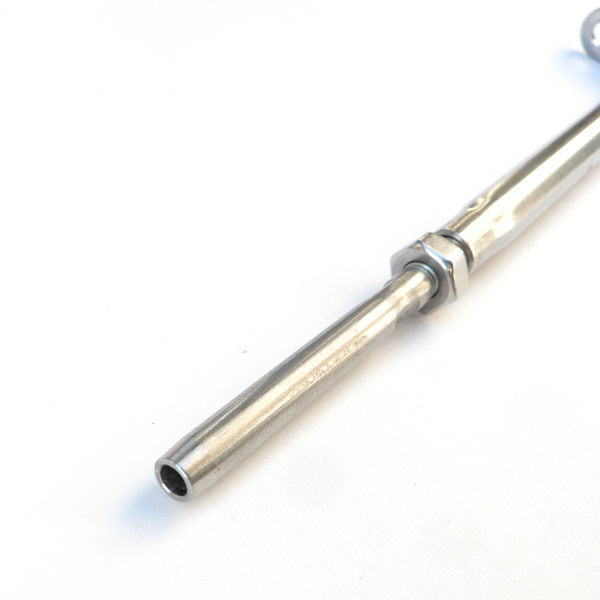

Part View Part View 2 Part View 3
[]

Turnbuckle Wall Mount & Swage

Model: S0784-07xx

Closed body turnbuckle with Wall Mount plate and machine-swage stub. Threads are UNF (fine). Machine swage only.

[]
[]
[] []
[] []
Stainless Steel Facts
See our All About Stainless Guide to learn about the materials from which these parts are made.
[]
[]
[] []
[] []
Hardware Terms
See our guide to hardware terminology. It'll help you sort out all the acronyms on our site.
[]
[] []
[] []
Suggested Tools
These tools and materials are suggested for installation.


Turnbuckle Wall Mount & Swage 1/4" x 1/8" $18.91
Turnbuckle Wall Mount & Swage 1/4" x 5/32" $19.38
Turnbuckle Wall Mount & Swage 1/4" x 3/16" $21.66
In Stock - Usually ships in 1-2 business days. Add to Cart
Learn More:  Product Details | Accessories | Tools and Installation Materials
[]
DIMENSIONS
part diagram ITEM A B C D E F WT
S0784-0703 1/8" 1/4" 4.20" 7.25" 0.25" 1.58" 0.25
S0784-0704 5/32" 1/4" 4.20" 7.50" 0.25" 1.58" 0.28
S0784-0705 3/16" 1/4" 4.20" 8.00" 0.25" 1.58" 0.32

DETAILS

  • 316 Stainless Steel, Stamped
[]
