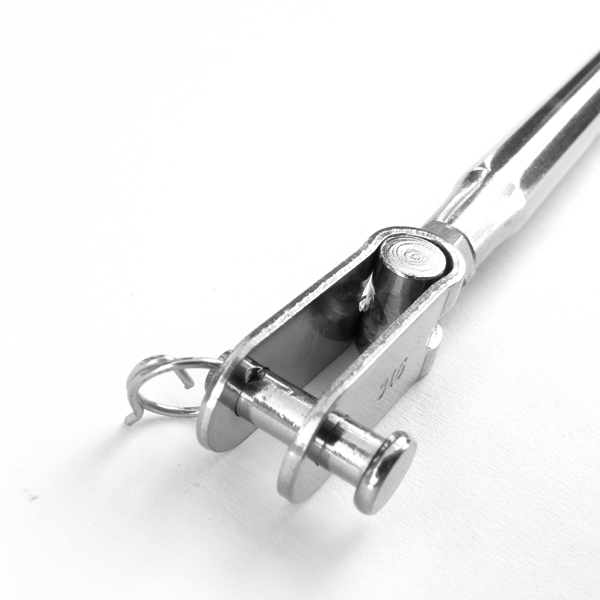

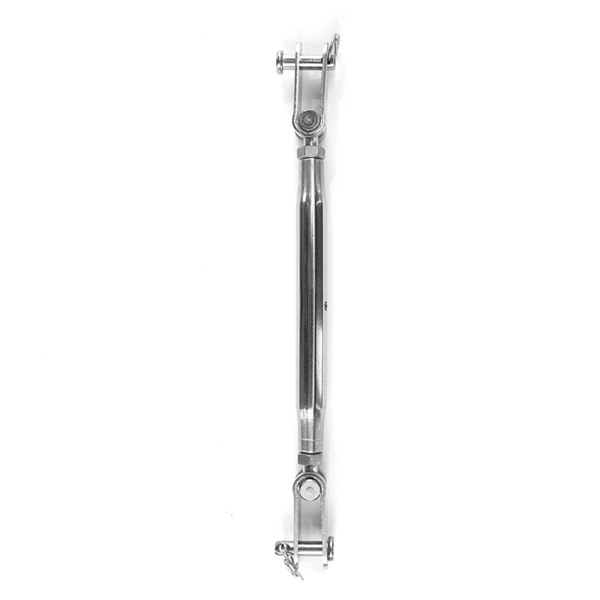

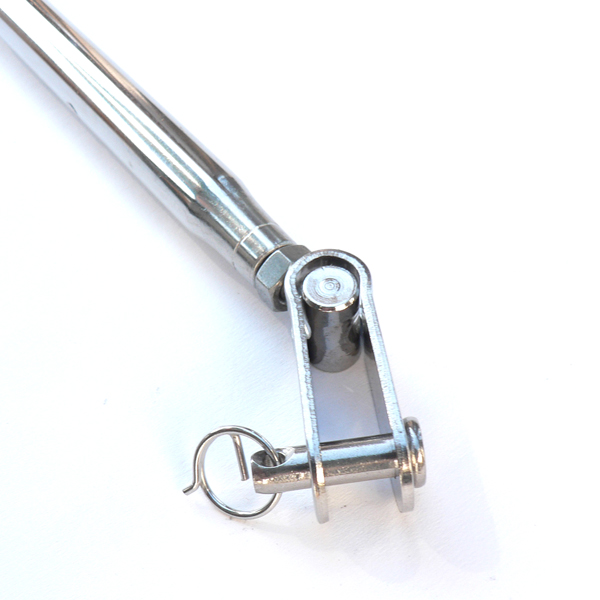

Part View Part View 2 Part View 3
[]

Stamped Turnbuckle Toggle & Toggle

Model: S0783-00xx

This Turnbuckle Is Ideal For Architectural And Marine Applications. Body Is Machined From Tubing. Toggles Are Formed. Threads Are "Unf".

[]
[]
[] []
[] []
Stainless Steel Facts
See our All About Stainless Guide to learn about the materials from which these parts are made.
[]
[]
[] []
[] []
Hardware Terms
See our guide to hardware terminology. It'll help you sort out all the acronyms on our site.
[]
[] []
[] []
Suggested Tools
These tools and materials are suggested for installation.


Turnbuckle Toggle & Toggle - 3/16" $19.29
Turnbuckle Toggle & Toggle - 1/4" $20.81
Turnbuckle Toggle & Toggle - 5/16" $29.17
Turnbuckle Toggle & Toggle - 3/8" $37.34
Turnbuckle Toggle & Toggle - 1/2" $55.01
Turnbuckle Toggle & Toggle - 5/8" $204.89
In Stock - Usually ships in 1-2 business days. Add to Cart
Learn More:  Product Details | Accessories | Tools and Installation Materials
[]
DIMENSIONS
part diagram ITEM A B C D E WLL
S0783-0005 3/16" 3.56" 6.00" 0.26" 0.19" 240
S0783-0007 1/4" 4.20" 6.87" 0.35" 0.23" 550
S0783-0008 5/16" 4.32" 7.63" 0.40" 0.31" 860
S0783-0010 3/8" 4.90" 9.12" 0.56" 0.37" 1,700
S0783-0013 1/2" 5.87" 10.87" 0.63" 0.47" 2,060
S0783-0016 5/8" 7.50" 16.25" 0.80" 0.62" 2,800

DETAILS

  • 316 Stainless Steel, Cast
[]
