Additional Images:
Part View Part View 2 Part View 3

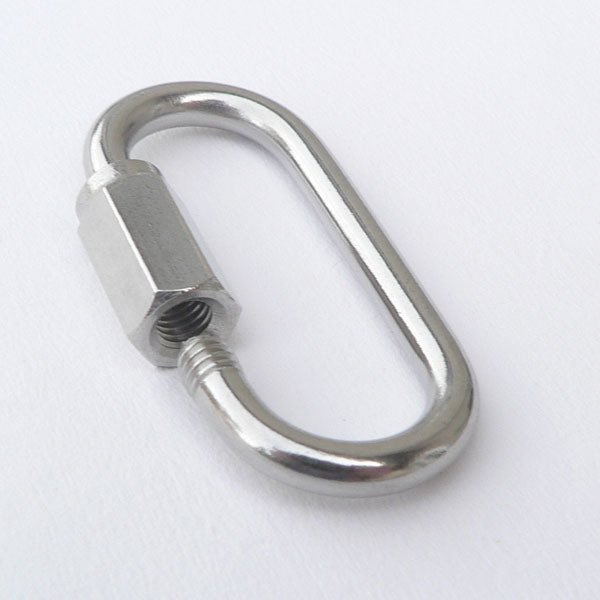

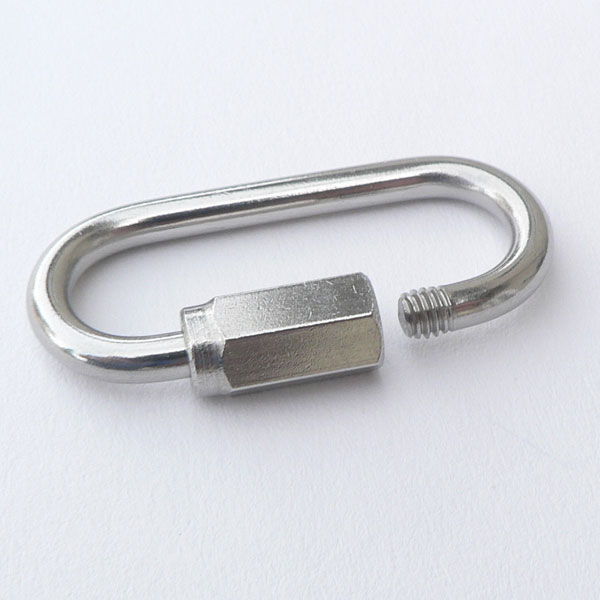

Metric Quicklink

Model: SH-x

These metric quicklinks come from Japan, and are beautiful parts. High polish, precision threads, and tiny sizes -- you have to see the 2 mm quicklink to believe the size. Unlike most large quick links where strength is primary concern, threaded head diameter of this QL is only slightly larger than bar stock diameter. This allows for passage through relatively small holes. We can special order larger sizes (8mm, 9mm, 10mm, 11mm, 13mm, 16mm, 19mm).

SUS304 stainless steel; tumble polished.


		Stainless Steel Facts See our All About Stainless Guide to learn about the materials from which these parts are made.



		Hardware Terms See our guide to hardware terminology. It'll help you sort out all the acronyms on our site.


		Suggested Tools These tools and materials are suggested for installation.

Learn More: Product Details | Accessories | Tools and Installation Materials

DIMENSIONS

Item	D	S	L	B1	B2	E	Wt. (g)	WLL (kgf)	WLL (kn)
SH-2	2	3.5	21	8	7	2.2	2	8	0.08
SH-2.5	2.5	4.5	25.5	9	8	2.7	4	15	0.15
SH-3	3	5.5	29	10	8.5	3.3	6	30	0.29
SH-4	4	6.5	34	11	9.5	4.4	11	50	0.49
SH-5	5	8.5	42	13	11.5	5.4	20	80	0.78
SH-6	6	9.5	49	15	13.5	6.5	32	150	1.47

DETAILS

Small, well machined quick link of metric-based diameter bar stock
SUS304 stainless steel; tumble polished
Unlike most large quick links where strength is primary concern, threaded head diameter of this QL is only slightly larger than bar stock diameter. This allows for passage through relatively small holes.
An ideal and secure method of connecting tethers and gear.
This quick link can replace the split ring on the MCT-1 tether providing a stronger and quicker attachment link

Quicklink 2 mm	$5.80
Quicklink 2.5 mm	$5.19
Quicklink 3 mm	$6.00
Quicklink 4 mm	$6.80
Quicklink 5 mm	$7.46
Quicklink 6 mm	$8.24
In Stock - Usually ships in 1-2 business days.	Add to Cart
